Mechanical 069

  • Disegno nr.: Mechanical drawing 069
  • Oggetto: Supporto| Mechanical Support
  • Difficoltà 2D **
  • Difficoltà 3D *

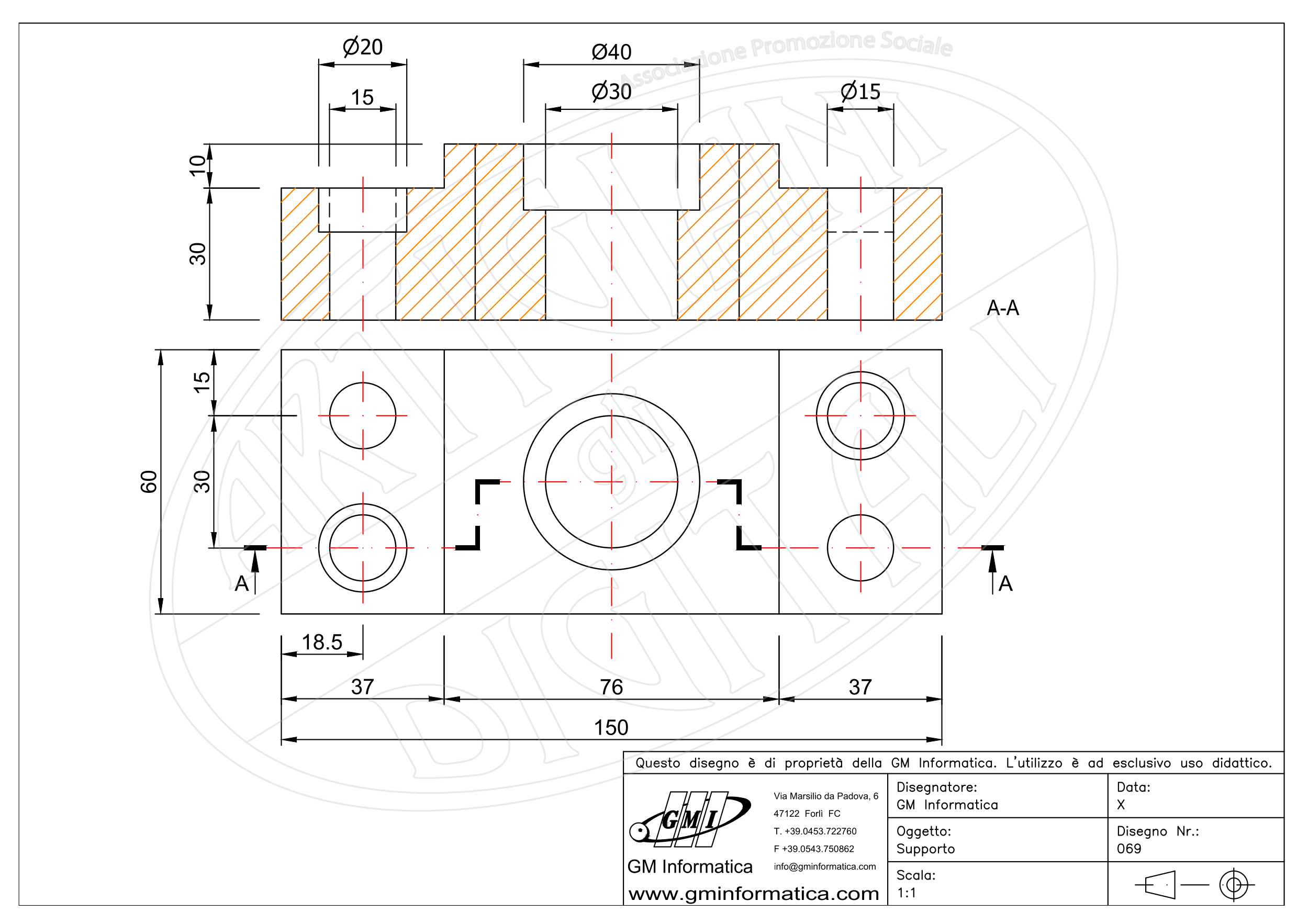

Mechanical Drawing 069 – 2D

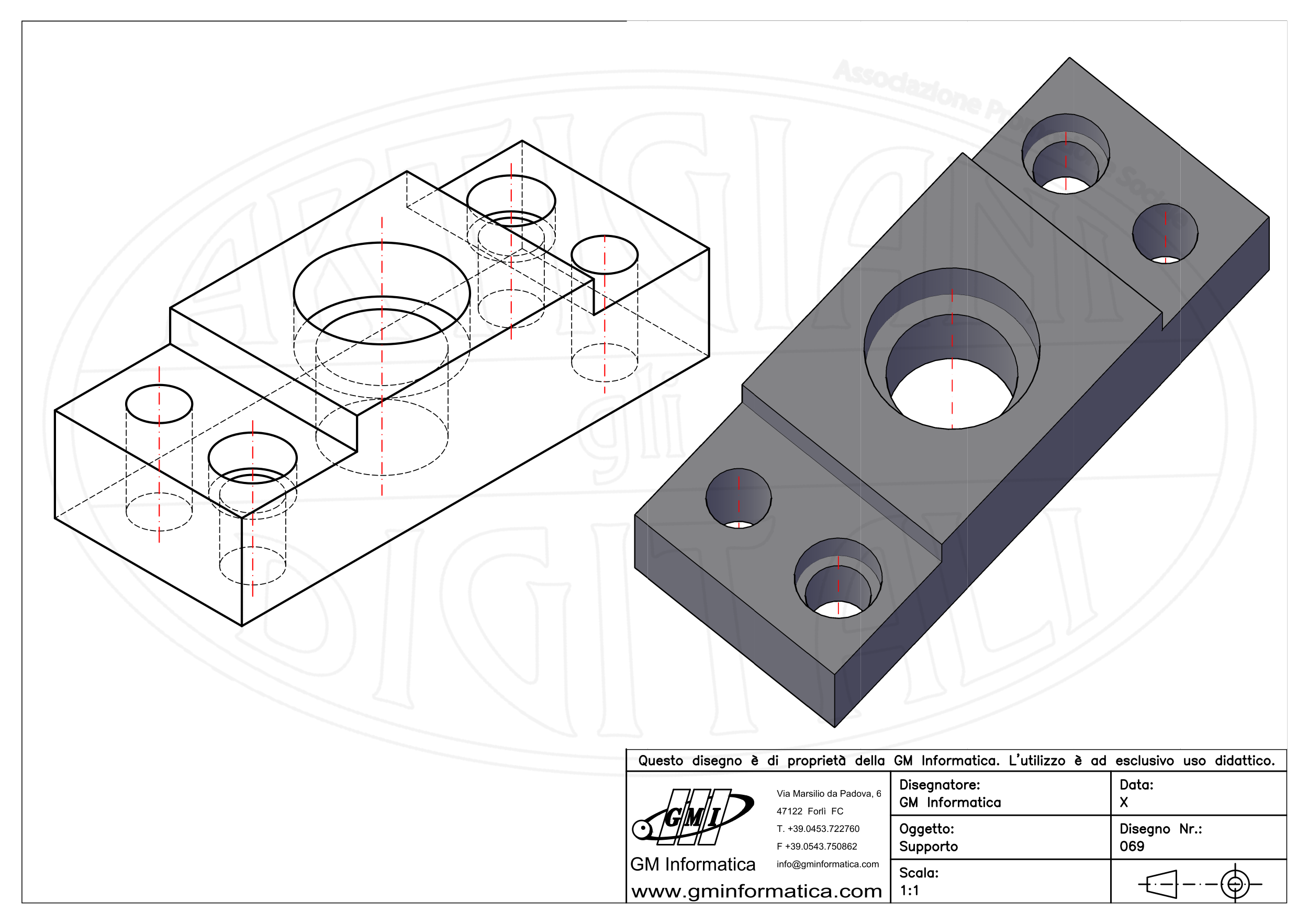

Mechanical Drawing 069 – 3D
