Mechanical 044

  • Disegno nr.: Mechanical Drawing 044
  • Oggetto: Staffa | Mechanical bracket
  • Difficoltà 2D *
  • Difficoltà 3D *

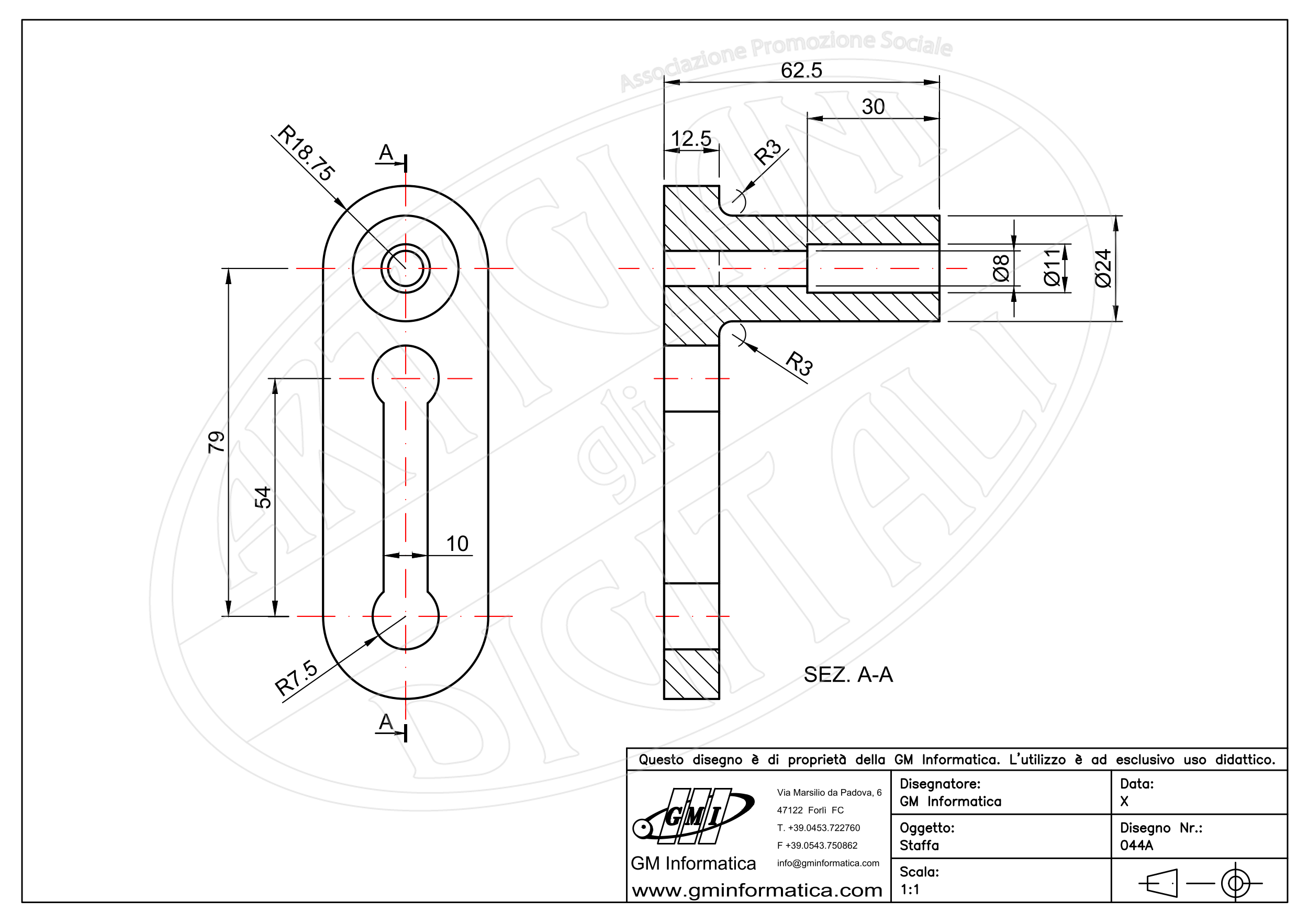

Mechanical Drawing 044 – 2D

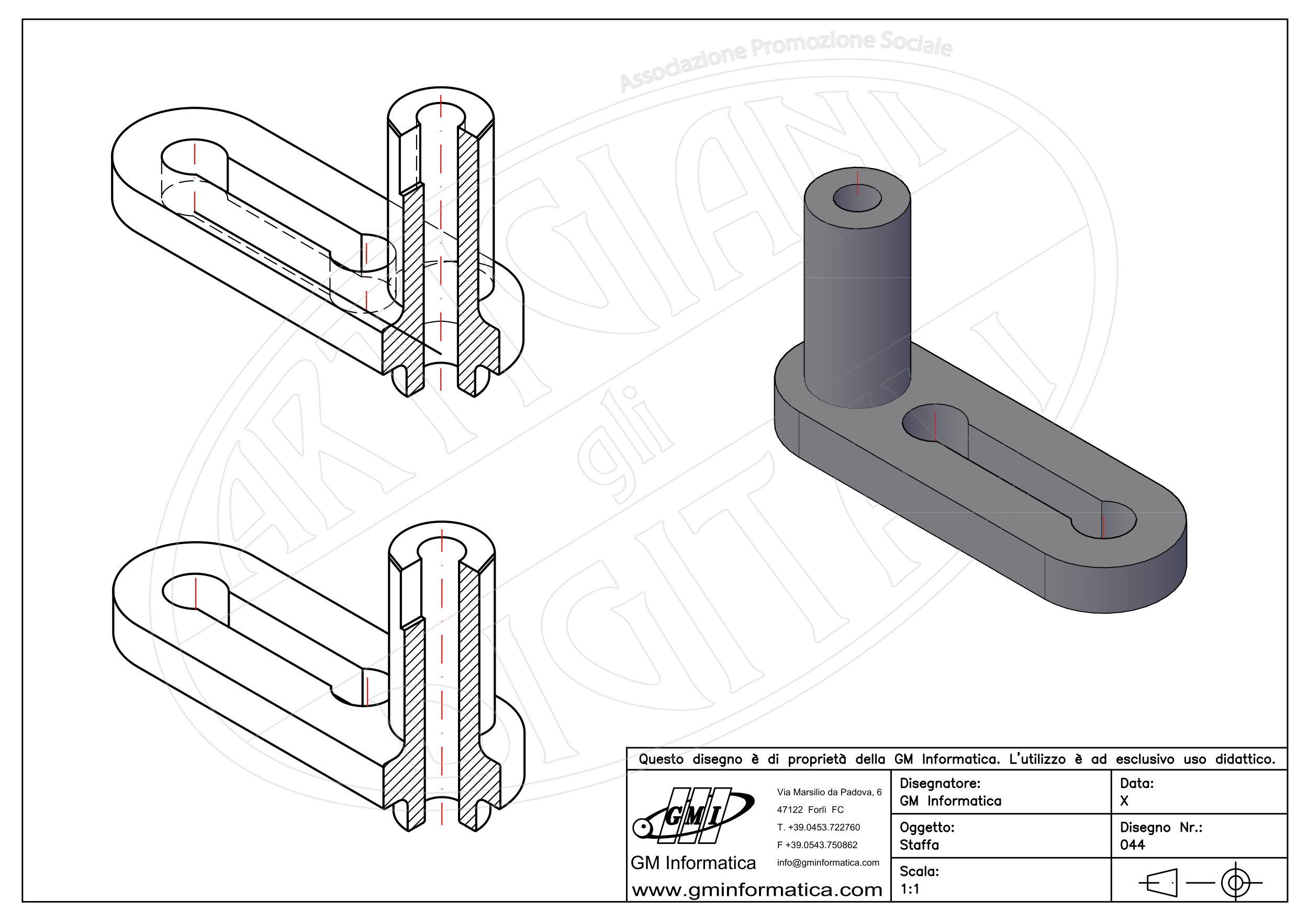

Mechanical Drawing 044 – 3D
