Mechanical 012

  • Disegno nr.: Mechanical Drawing 012
  • Oggetto: Flangia | mechanical flange
  • Difficoltà 2D *
  • Difficoltà 3D *

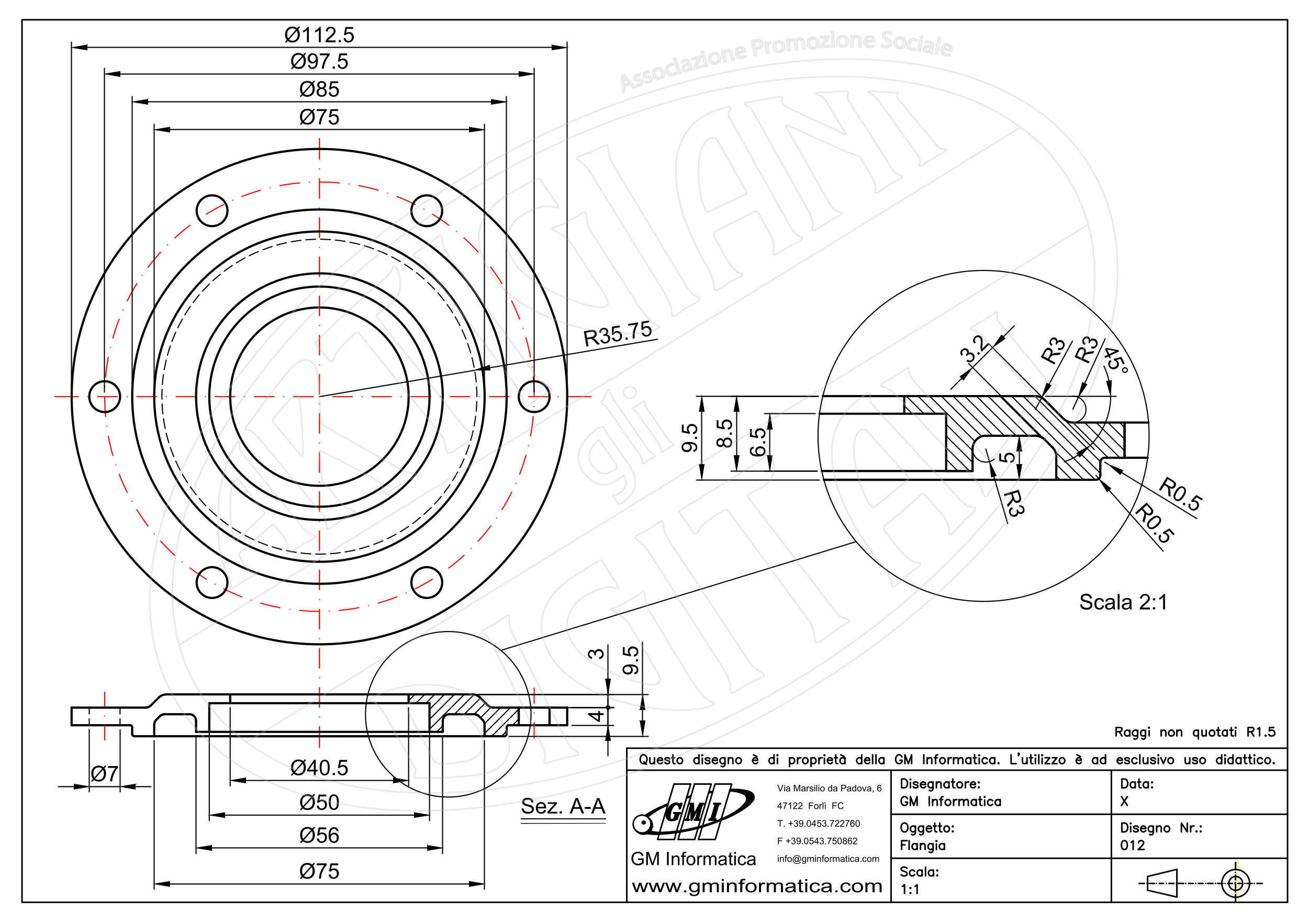

Mechanical Drawing 012 – 2D

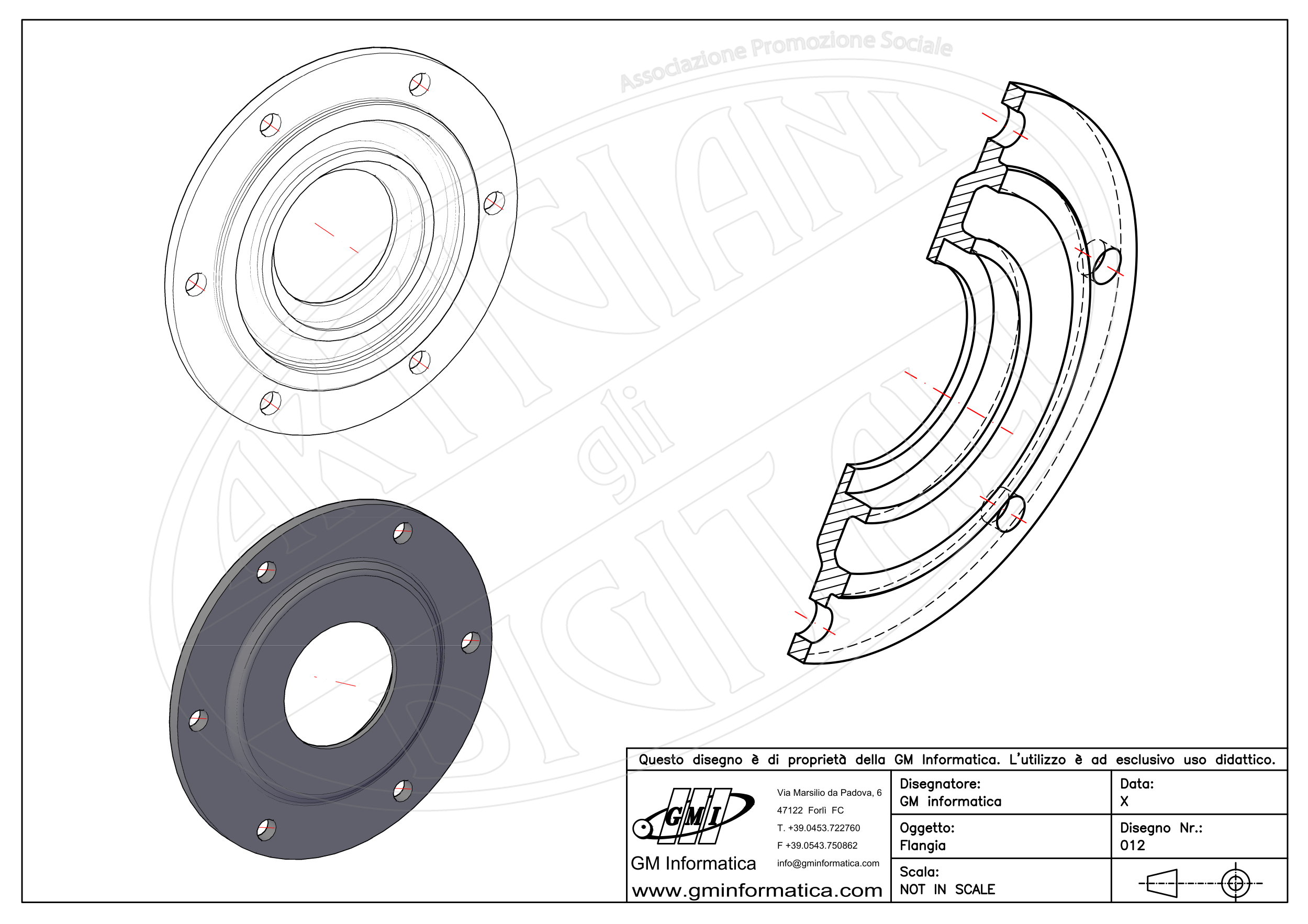

Mechanical Drawing 012 – 3D
